AIR applications, as of AIR runtime 1.5 support encrypted SQLite databases. The SQLConnection class contains 'open' and 'openAsync' methods that include an optional encryptionKey parameter. The encryptionKey parameter is 16 bytes long and a ByteArray. Writing your AIR application's code to create and leverage this encryption key (using the SQLConnection class 'open' method) is shown below.
Explanation of the encryption process:
- Create a seed string of your choice, mySeed.
- Prepare a bytearray variable to hold the encryption key
- Create the myKey ByteArray
- Use hexToInt function and the seed, mySeed, to create the key
- Use the writeByte method - Writes bytes to the byte stream
- Create a File that will represent the SQLite database
- Pass the key [a ByteArray], myKey, to the open method of the SQLConnection, dbConn
import flash.data.*;
import flash.filesystem.File;
private var dbConn:SQLConnection = new SQLConnection();
private var dbStatement:SQLStatement = new SQLStatement();
private function init(): void {
// create a seed string of your choice
var mySeed:String = "AdobeAIRIsAGreatProduct";
// prepare a bytearray variable to hold the encryption key
var myKey:ByteArray = new ByteArray();
// create the myKey ByteArray
var i:int = 0;
for (var j:int=0; j<16; j++) {
// use hexToInt function and the seed to create the key
i = (hexToInt(mySeed.charCodeAt(j))*15) +
hexToInt(mySeed.charCodeAt(j+1));
// use the writeByte method - Writes byte to the byte stream
myKey.writeByte(i&0x00FF);
}
// create a File that will represent the SQLite db
var dbFile:File =
File.desktopDirectory.resolvePath("Encryptedemployees.db");
dbStatement.sqlConnection = dbConn;
//pass the key, myKey, to the open method of the SQLConnection, dbConn
dbConn.open(dbFile, SQLMode.CREATE, false, 2048, myKey);
}
private function hexToInt(hex:Number):int {
return parseInt("0x" + hex);
}
This example is available here. The source code is available by right-clicking and selecting 'View Source' in this AIR application. You will need to install the Adobe AIR runtime if you do not already have it installed.
|
Some screenshots:
The SQLite database contains Lord of the Rings information.

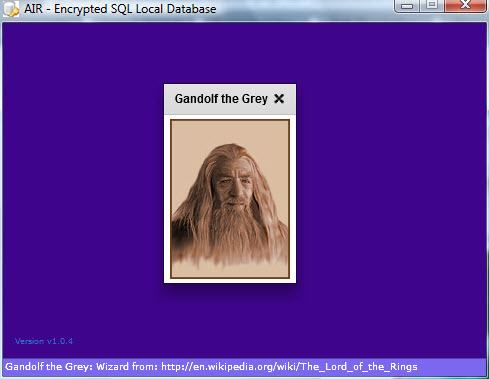

A TitleWindow that displays the Lord of the Rings characters' images as read from the SQLite database.

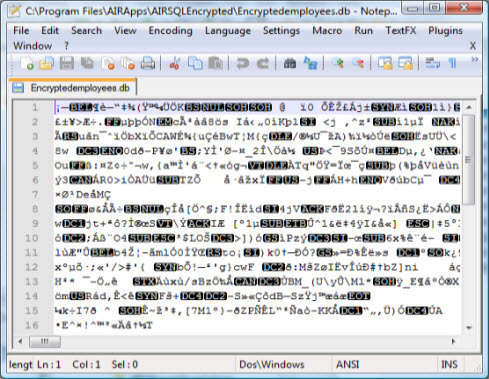

Opening the database shows that the data is encrypted.
